Default PCV Breather System Replacement

I know that there is a previous post with a lot of information on how to service the PCV system on the 850’s but I found that my setup was slightly different and I’ve included some pictures.

I decided it was time to service the system because the motor was showing signs of high pressure in the engine and head (oil on the top of the motor, oil being forced out the crank seal and oil dipstick seal) and I know there are over 200k miles on the motor (although the odometer doesn’t reflect that fact).

Although servicing the PCV system is not beyond the weekend mechanic it is not a quick job by any means. It does give you the opportunity to service or replace several other parts while your in the neighborhood, such as the EGR valve, Throttle Position Sensor, Fuel Pressure Regulator and Starter Motor just to name a few.

Before the actual work on my 850 happened I ordered the replacement parts that I expected that I would need. I ordered mine from FCPGroton.com, they offer a complete PCV Breather system kit which will have the various hoses and clamps as well as the Oil Separator and the Flame Trap. For good measure they also throw in a new Intake Manifold Gasket. I also purchased a new Throttle Body Gasket, a new Vacuum Tree with o-ring, a oil cap gasket and new o-rings and seals for the Fuel Injectors. I already had on hand some vacuum hose, Throttle Body Cleaner and starting fluid.

The tools required are a metric socket set, a set of Torx bits, a CV joint boot clamp pliers (for the new hose clamps on the PCV system), and a jack with stand. A shop light also proved to be very helpful.

And now, the procedure I used to replace the PCV system on my ’94 Volvo 850 (if yours is newer or Turbo it may be slightly different).


1) Disconnect the Negative Battery Cable (should go without saying, but I will say it)
2) Remove and set aside the various trim pieces that will be in your way. The trim piece on the fuel rail just pulls off. The sparkplug wire cover is held on with five T-30 screws. The Idle Air/Throttle Wheel cover is held on with a single T-25 screw, then rock forward off the Idle Air Bracket.


Click the image to open in full size.

3) Remove the Idle Air Pump – Disconnect the wiring harness from the air pump. Release the rubber retaining strap holding the air pump to the bracket by using a finger on the underside of the bracket to push the rubber tab out of the bracket. Remove the hoses from the Vacuum Tree and the Air Intake. The Idle Air Pump will now lift off. Set the Air pump aside and note the direction of retaining strap on the pump for reinstallation.
4) Remove the Vacuum Tree from the Intake – Release the five small vacuum hoses from the tree and note where they go so you can get them reconnected properly. After removing the 10mm bolt the Vacuum Tree will lift out.

Click the image to open in full size.

5) Disconnect the throttle linkage connecting the accelerator cable drum to the Throttle body. Note the orientation of the linkage when you remove it and set it aside.
6) Remove the Throttle Drum/Air Pump mounting bracket. The bracket is held down with three 10mm bolts. You do not need to disconnect the accelerator cable, just set the bracket out of the way somewhere in the engine compartment.
7) Remove the Air Duct connecting the Intake of the Throttle Body and the output of the Air Cleaner box – Remove the Flame Trap from the rear of the air duct by rotating it a few degrees to the right and pull out to release the bayonet style base on the Flame Trap (the Flame trap will give you for first glimpse of the PCV system health, mine was clogged with soot and nasty looking stuff). Loosen the clamps holding the air duct to the Throttle Body and the Mass Airflow Sensor using a screwdriver or a 7mm socket, pull off the duct and set aside.
8) Remove the Throttle Body – Disconnect the wiring harness from the Throttle Position Sensor and the two vacuum hoses on the underside of the Throttle Body. There are four 10mm bolts holding the Throttle Body onto the Intake Manifold to remove. Until you are sure all four bolts are identical note where each came from, mine were all the same, yours may not be. Use Throttle Body Cleaner to remove the varnish and deposits from the Throttle Body as well as any part of the old gasket left behind and set aside.


Click the image to open in full size.
9) Disconnect the breaking system vacuum boost hose from the Intake Manifold.
10) Disconnect the wiring harnesses from the Fuel Injectors and pull it out of the way.
11) Release the fuel pressure in the Fuel Rail by connecting a fuel pressure gage with pressure release to the Schrader valve on the end of the fuel rail. If you don’t have fuel pressure gage or like me yours is in another state right now use a T-10 screw driver wrapped in a rag to release the pressure.


Click the image to open in full size.
12) Remove the Fuel Rail and Injectors from the Manifold – Remove the T-25 screw from the clamp holding the fuel supply and return lines to the rear of the engine. Loosen the T-25 clamp on the fuel return line from the Fuel Pressure Regulator and remove the rubber hose from the fuel return line. Remove the T-25 screw holding the retaining clip in place on supply side of the Fuel Rail, be very careful not to drop the screw or the retaining clip! With the retaining clip removed pull the supply line out of the Fuel Rail, there likely will be fuel that comes out of the Fuel Rail once you pull the supply line. Remove the two 10mm bolts holding the Fuel Rail and Injectors onto the Intake Manifold. With the bolts removed you can pull on the Fuel Rail to remove it and the Injectors. The o-rings holding the injectors in place should be very tight and some force may be required to remove the Injectors from the Manifold. Check that there weren’t any o-rings or seals left behind.


Click the image to open in full size.
13) Jack the vehicle and secure with a jack stand.
14) From underneath the vehicle you can access two 12mm bolts that need to be removed, one holds the oil dipstick tube to the underside of the manifold, the other attaches the Intake Manifold to an engine support bracket. Note which is which as oil dipstick retaining bolt is shorter.
15) Loosen the four 10mm bolts on the lower edge of the Intake Manifold where it connects to the engine. After breaking them loose with a box end wrench you should be able to turn them by hand. Loosen them about a quarter inch but do not remove them. One of the lower bolts is very near the thermostat, it is easy to miss and difficult to get to, I used a ¼ inch deep-well socket and about 16 inches of extension so the ratchet would clear the Power Steering Pump.
16) Remove the three 10mm bolts on the upper edge of the Intake Manifold. Note which hole each bolt came from.
17) Now that the Intake Manifold is loose you can get to the two 8mm bolts holding the EGR valve to the underside of the manifold near where the Throttle Body was. These bolts suck to remove and are about a half inch longer than they need to be. Remove the bolts and recover the gasket that sits between the manifold and the EGR valve.
18) Disconnect the head vent hose from the top of the engine.
19) Rock the Intake Manifold forward and lift out starting at the Thermostat end. As you are lifting it out there is a vacuum line running to the choke control that needs to be disconnected and the Head Vent Hose and Flame Trap Hose will need to fed through the manifold. With the Manifold removed clean the injector seats and gasket surfaces with throttle body cleaner, set aside.


Click the image to open in full size.
20) Mark the position on the Intake Manifold support bracket on the block, then remove the 12mm bolt holding the bracket to the block and allow the bracket to hang out of the way.
21) Remove the clamp on the Crank Vent hose,
22) Loosen the two clamps on the Oil Drain hose using a T-25 screw driver.
23) Remove the two 10mm bolts holding the Oil Separator to the block. Pry the Oil Separator away from the block disconnecting the Crank Vent Hose and the Oil Drain Hose. Discard the Oil Separator and hoses.
24) Blow some compressed air into the Crank Vent, Oil Drain and Head Vent openings to be sure they are clear.
25) Fit the new Head and Crank Vent hoses and the elbow for the Flame Trap hose to the new Oil Separator, tighten the clamps using a CV Joint Boot Clamp Pliers or similar tool.
26) Fit the new Oil Drain hose to the Oil Separator, slide on the new clamps and fit the Oil Trap onto the block. Install the two 10mm bolts that hold the Oil Separator to the block. Tighten the two T-25 screws on the Oil Drain clamps. Fit the Crank Vent hose to the block and tighten the clamp.
27) Double check that all hoses are tight and that all required clamps are installed.
28) Reinstall the Manifold Support Bracket in the marked position; tighten its 12mm bolt.
29) Remove the four lower Intake Manifold bolts, remove and discard the old manifold gasket. Fit a new gasket in place and return the four bolts their spots.
30) Set the Intake Manifold in place on the lower manifold bolts. Feed the new Head Vent and Flame Trap hoses through the manifold, reconnect the vacuum hose to the Choke control.
31) Reconnect the EGR valve to the manifold using its two 8mm bolts. Don’t forget its gasket; tighten the bolts to spec.
32) Install, but do not tighten, the three upper manifold bolts.
33) Install the 12mm bolt connecting the Intake Manifold to the support bracket and the bolt connecting the Oil Dipstick tube to the manifold.
34) Tighten all seven 10mm Intake Manifold bolts to spec.
35) Fit the Head Vent hose to the vent on the head, install and tighten the clamp.
36) Install the Fuel Rail and Injectors onto the Intake Manifold. Some pressure may be required to get the injectors to seat properly. Press the seals into place.
37) Reconnect the fuel return line to the Fuel Pressure Regulator and the fuel supply to the input of the Fuel Rail. Tighten the clamps on the return line and fit the retaining clip and screw into the supply side. Reinstall the retaining bracket and T-25 screw on the rear of the block.
38) Fit the Throttle Body with a new gasket to the Intake Manifold using its four 10mm bolts; tighten to spec. Reconnect the two vacuum lines on the bottom of the throttle body and reconnect the wiring harness to the Throttle Position Sensor.
39) Reconnect the braking system vacuum boost hose.


Click the image to open in full size.
40) Fit the new Flame Trap into the Air Duct. Reinstall the Air Duct connecting it to the Throttle Body and the Mass Air Flow Sensor on the Air Box. Connect the Flame Trap hose and the smaller vacuum hose to the Flame Trap.
41) Route the Fuel Injector wiring harness to the Injectors and plug them in.
42) Install the Throttle Drum/Air Pump bracket on the manifold using its three 10mm bolts. Reattach the Throttle Linkage; install the screw on the injector wiring retaining harness.
43) Fit the Vacuum Tree to the manifold. Be sure it is fully seated before installing its 10mm retaining bolt. Connect the five smaller vacuum lines to the tree.
44) Install the Idle Air Pump. Connect the two hoses to the Vacuum Tree and the Air Duct. Install the air pump retaining strap, you may need to use a screw driver to help seat the strap. Reconnect the wiring harness to the Idle Air Pump.
45) Reconnect the battery.
46) Start the motor. Note: it will likely be difficult to start the motor due to the fuel system being dry.
47) Check for fuel leaks around the Fuel Rail supply and return lines as well as around the injectors.
48) Check for vacuum leaks. With the motor running I sprayed starting fluid around the Vacuum Tree, Throttle Body, Injectors and the manifold output. Where ever there is a leak the starting fluid will be drawn in and cause the motor to race.
49) As long as there aren’t any fuel or vacuum leaks go for a test drive. It probably indicates another problem with my Volvo but when I went for my test drive about a half mile from home the motor died. After waiting about 5 minutes it started and it hasn’t died on me again nor were any codes stored in the computer.
50) After a few days of driving change the engine oil and filter.

Take your time, be careful and have fun!

Last edited by mhutchens; 10-19-2009 at 09:34 PM. Reason: Moved pictures to a different server
Reply With Quote
  #2
Old 09-03-2009, 07:25 AM
JimKW's Avatar
Super Moderator

Join Date: Mar 2005
Location: Columbus, OH
Posts: 3,568
Default

Very good writeup. I am adding this to the sticky at the top in the Frequently Used Thread.
__________________
95 Yellow T5R - Drive it when I feel like it
00 Crownline 180 BR - 'Lil Red'
06 BMW 330xi - My Daily Driver if I don't drive Yellow
03 Toyota 4Runner Limited V8 - Wife likes it better than the other cars so she drives it.
Reply With Quote
  #3
Old 09-03-2009, 10:15 AM
Former Sponsor

Join Date: Jul 2008
Posts: 1,710
Default

Awesome write up. This is the first one I have seen done on an NA Volvo.

Last edited by rspi; 08-06-2011 at 09:13 AM. Reason: typo
Reply With Quote
  #4
Old 10-16-2009, 11:12 AM
theinfamousdrew's Avatar
Junior Member
2006 Acura RSX
My Garage

Join Date: Oct 2009
Location: Charlotte, NC
Posts: 5
Default

where are the pictures for this?
Reply With Quote
  #5
Old 10-16-2009, 10:18 PM
Senior Member
1994 Volvo 850

Join Date: Aug 2009
Location: Evansville, IN
Posts: 106
Default

It seems my server is off-line . . .

Pictures are back now.
__________________
Mike

Joined the Volvolution when I bought Inga:
'94 850 NA with 190k miles - $500 cash

Last edited by mhutchens; 10-17-2009 at 09:39 AM. Reason: Update
Reply With Quote
  #6
Old 05-04-2010, 08:29 AM
Junior Member

Join Date: Apr 2010
Location: St Augustine, FL
Posts: 14
Default

I found some links that have really helped me on my PCV system replacement that I believe can augment the link you already have in the sticky links.

the links are:

17 a & b PCV system replacement:

http://www.matthewsvolvosite.com/for...hp?f=1&t=28487

http://lakesidedp.com/uploadpics/pcv/

Both have excellent pictures and threads and get into cleaning the PCT and EGR too.

Here are other links specifically for these two:

42 PCT removal and cleaning:
http://www.matthewsvolvosite.com/for...hp?f=1&t=28415

43 EGR removal and cleaning:
http://volvospeed.com/volvo_repairs_...ation_egr.html

Last edited by rspi; 08-05-2011 at 05:53 AM. Reason: Repair Link
Reply With Quote
  #7
Old 07-12-2010, 07:57 PM
Senior Member

Join Date: Jul 2009
Location: New Zealand
Posts: 196
Default

whereabouts is the 12mm bolt attaching manifold to the engine support bracket? I'm having a hard time finding it. Is it on the left side if you are facing the engine?
Reply With Quote
  #8
Old 07-13-2010, 02:05 AM
Senior Member

Join Date: Jul 2009
Location: New Zealand
Posts: 196
Default

well job done....kinda. A few problems to eventually sort out but she's running.

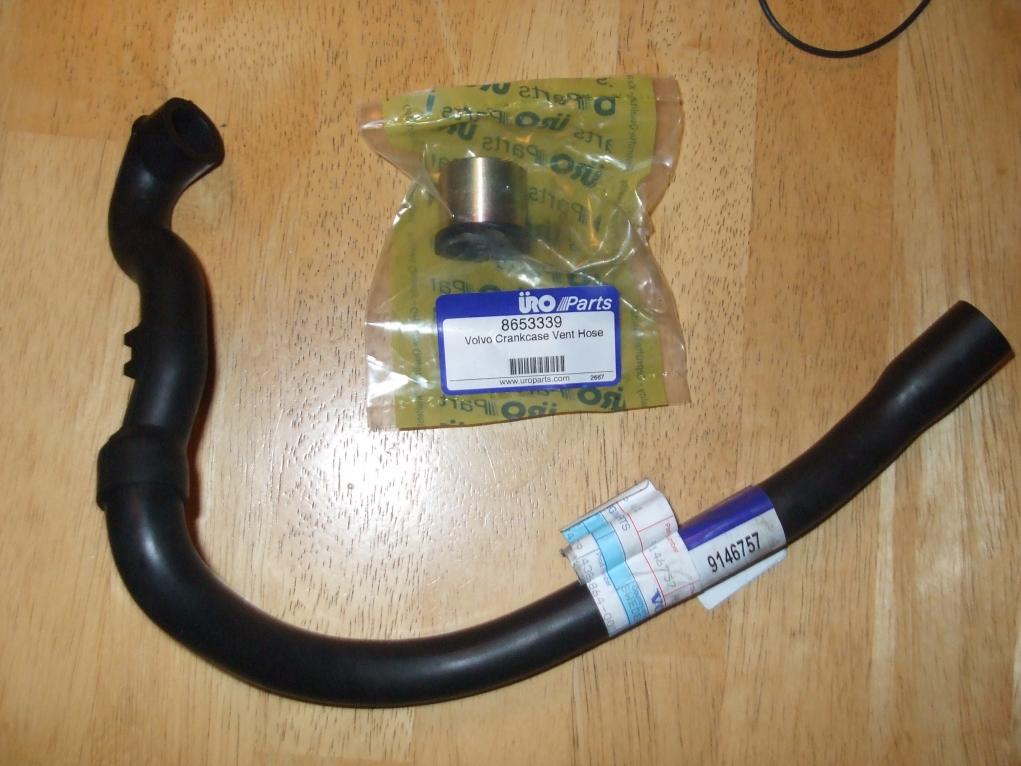

I had some extra parts from my kit from FCP. There's a hose and also a crankcase vent hose fitting. I didn't find anything similar on my 2.4 n.a. Does anyone have an idea what these are for?
