Default Courtesy Lamp Relay
Hello,
I'm trying to locate the courtesy lamp relay on a 1993 850. Can anyone assist me? Thanks

Reply Like
  #2
Old 03-19-2013, 07:22 PM
Kiss4aFrog's Avatar
Administrator
Join Date: Mar 2010
Location: Cape Coral, FL
Posts: 4,516
Received 11 Likes on 11 Posts
Default
I'm not sure there is a relay. What is it that you're trying to fix. What is or isn't the vehicle doing ??

Reply Like
  #3
Old 03-20-2013, 03:24 AM
Brick850's Avatar
Senior Member
Join Date: Dec 2011
Location: Adelaide, Australia
Posts: 445
Likes: 0
Received 2 Likes on 2 Posts
Default
the delay relay is up near the accelerator pedal, on the panel of relays near the intermittent wiper relay. I cant remember what colour it is, but it has dome light relay stamped on it I think.

Reply Like
  #4
Old 03-20-2013, 01:03 PM
Kiss4aFrog's Avatar
Administrator
Join Date: Mar 2010
Location: Cape Coral, FL
Posts: 4,516
Received 11 Likes on 11 Posts
Default
It's shared with the central locking system. It's in position "K" in the locator pictured.


http://www.volvoclub.org.uk/tech/ser...entLocator.pdf

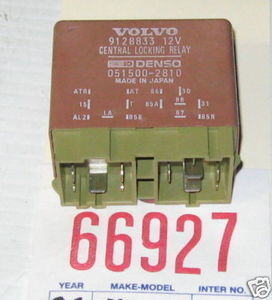

Attached Thumbnails Courtesy Lamp Relay-component-locator-fuses-realys-poor.jpg   Courtesy Lamp Relay-relay-central-locking-lighting.jpg   Courtesy Lamp Relay-relay-light-control_central-locking.jpg
Last edited by Kiss4aFrog; 03-20-2013 at 01:16 PM.
Reply Like
  #5
Old 03-20-2013, 01:33 PM
Barnacle Bill's Avatar
Member
Thread Starter
Join Date: Apr 2009
Location: Ocala, FL
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Default
So, the access is from inside the passenger compartment?

Reply Like
  #6
Old 03-20-2013, 02:38 PM
Kiss4aFrog's Avatar
Administrator
Join Date: Mar 2010
Location: Cape Coral, FL
Posts: 4,516
Received 11 Likes on 11 Posts
Default
Yes it is.

Reply Like
  #7
Old 03-21-2013, 10:40 AM
Barnacle Bill's Avatar
Member
Thread Starter
Join Date: Apr 2009
Location: Ocala, FL
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Default
Thank you, I just might begin to see the light once I get this thing fixed

Reply Like
  #8
Old 03-22-2013, 08:46 PM
Kiss4aFrog's Avatar
Administrator
Join Date: Mar 2010
Location: Cape Coral, FL
Posts: 4,516
Received 11 Likes on 11 Posts
Default
Be careful about seeing that light. It could be daylight or a big ugly train !!

Reply Like
