I'm getting to know my turbo a bit better. It has some oil around there and I want to determine what are all the connections and where do they go. I first thought that the oil leak was coming from a water cooling hose!!
Can someone please recommend a site or parts diagram that would have a blow up of my turbo and labels with all the connections?
Txs. It is a 1997 850 AWD wagon with the small turbo.



Google will be your friend.

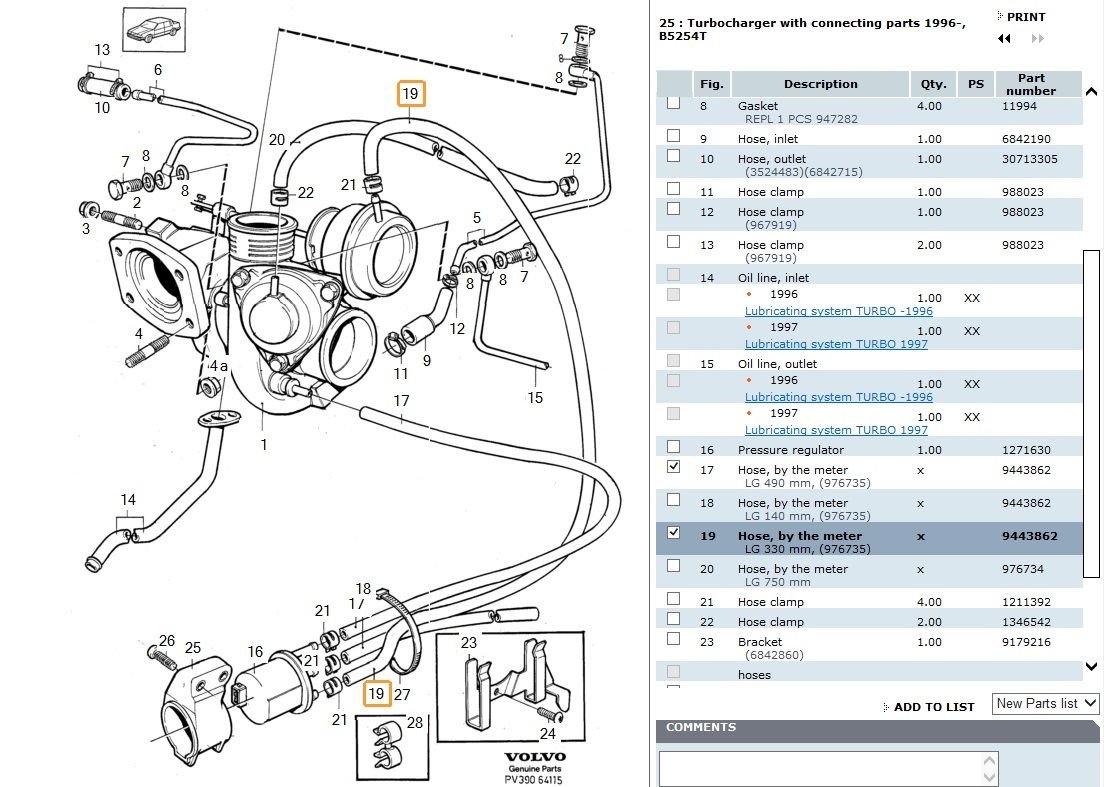

Thank you. I saw this diagram while searching, but it has no labels. I want to know what the pieces are called. Also, I am not sure if this is mine exactly. I see a little clip at the end of line 17 on my turbo that is not shown on the diagram. Where does this diagram come from, perhaps if I had a link to that. txs



That diagram is really for hose direction. The hoses have spring loaded clips on them, they are all the same. If you dont see it on the diagram, dont sweat it. Whats important is that you get the hoses connected correctly and secured.



Well, I'm trouble shooting some oil leaking around there. I thought it was coming from hose 17, since it is all wet, but that looks like it may be vacuum. Where do these typically leak at?
Txs



Where does WHAT usually leak from? The car, motor, turbo, PCV? Where are you seeing oil come from? These 20 year old cars leak oil everywhere.



Sorry. I'm seeing some wet oil on the bottom of the turbo. On hose 17 where it goes into the turbo



Thats probably just your turbo.



Just wondering what the yellow hose (19) is called in the diagram?
thanks​​​​​​



I’m wondering what hose #19 the yellow one is called?
thanks



Do you know what the name of hose #19 is?
thanks



Sure - "hose, by the meter 330mm long" - or it's the hose to your wastegate.



Any sites you know to order that off of? Mine broke from wear.



It's vacuum hose, get it by the foot at the local auto parts store.
