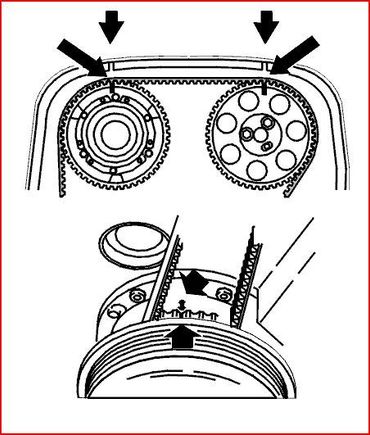

Timing mark diagram
The diagram for the crankshaft pulley is not particularly helpful, as the actual timing marks are between the pulley and the motor, and also hidden behind the accessory belt pulley. See the other pictures for more detail.
