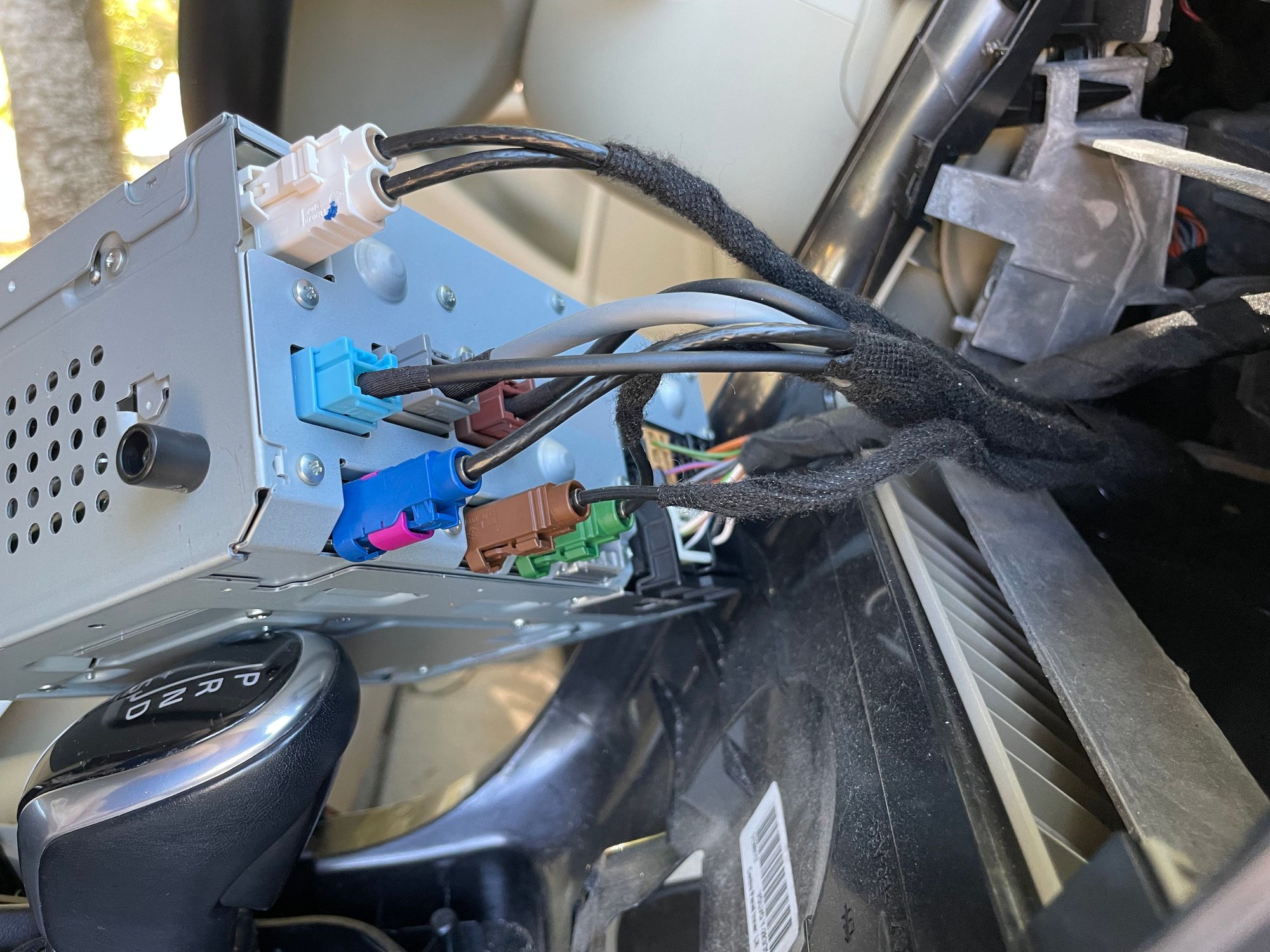

Can someone provide a diagram with what all of these outlets are on an OEM infotainment head unit? I'm trying to install an aftermarket display above this unit and connecting that display to this unit has been challenging! Thank you for the help,

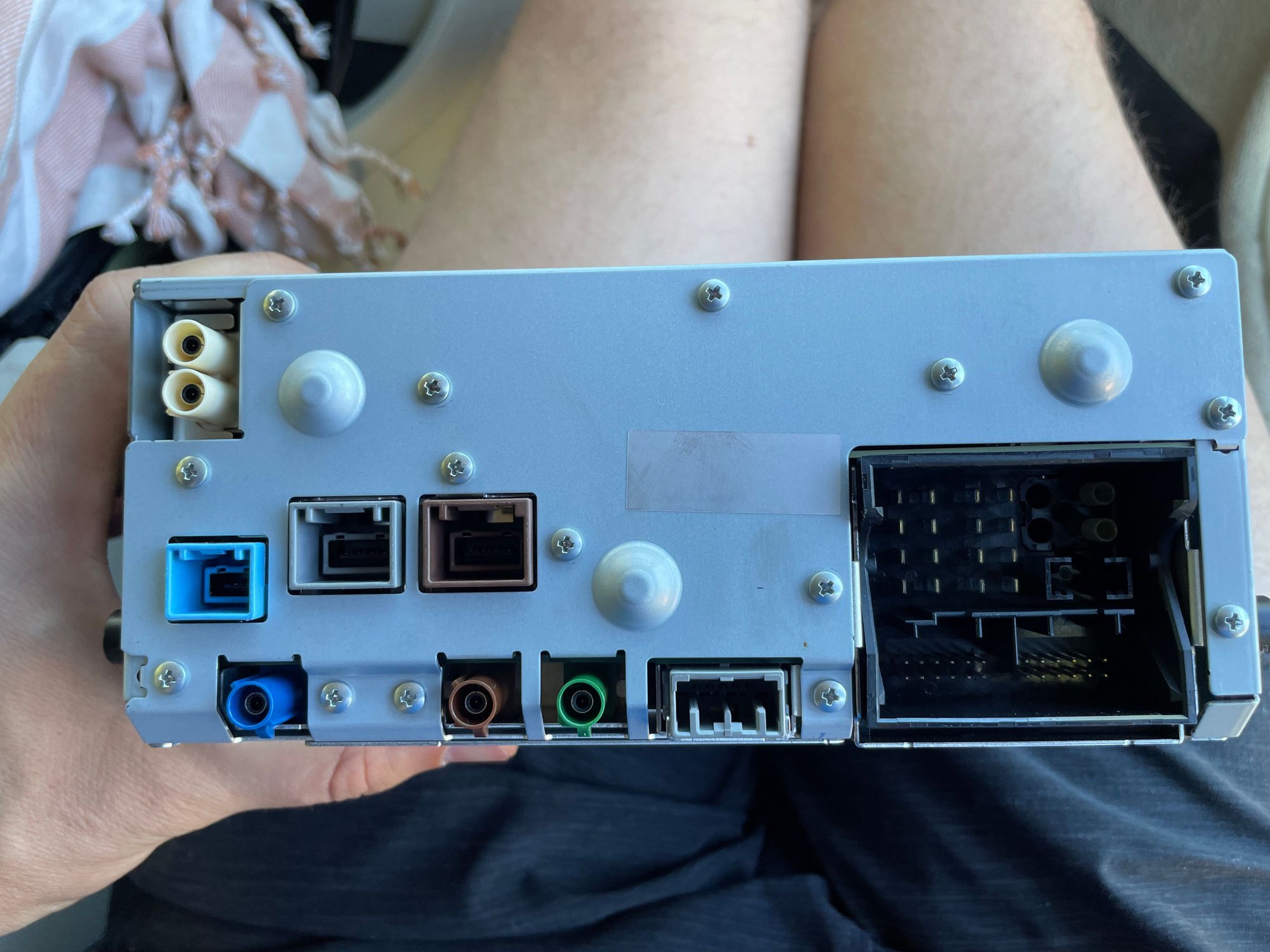

Would like to know what each one of these outlets provides to the car. Pretty sure light blue is for the display screen.
