Does anyone have a diagram/picture or drawing they can provide for the Gray Connector at the rear of the engine bay on a 1983 Volvo 245? This is the one with 8 slots, that usually has degraded bare wires leading from it. The diagram I have found on the internet seems to have different colored wiring coming from it.

I've attempted to use an Ohm meter, but since most of the wires are bare, and touching eachother, they tend to show continuity no matter which one I'm touching.

Any picture, or description would really save my ***. I mostly need to know which slot the oil pressure sensor(black wire) and alternator D+61(little red wire) go to. Any help would be appreciated.

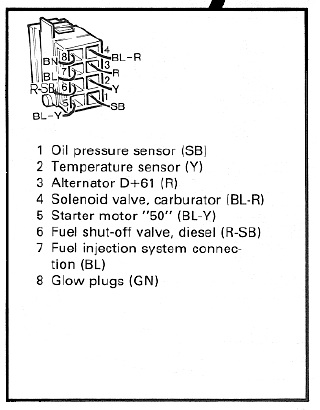

There is a 80% chance this will match your car



Thanks! I'll be checking it out within the next few hours.



So it turns out the black and yellow were switched. I'm not sure if that was the previous owner or what. Hopefully this helps someone else. Thanks guys!
