Not my new 25 tooth gear, possibly the Service Light Rest "switch"?! See pic I realy think it the odometer "motor?" Pic. Notes per pic. Bentley Manual no help. See pic

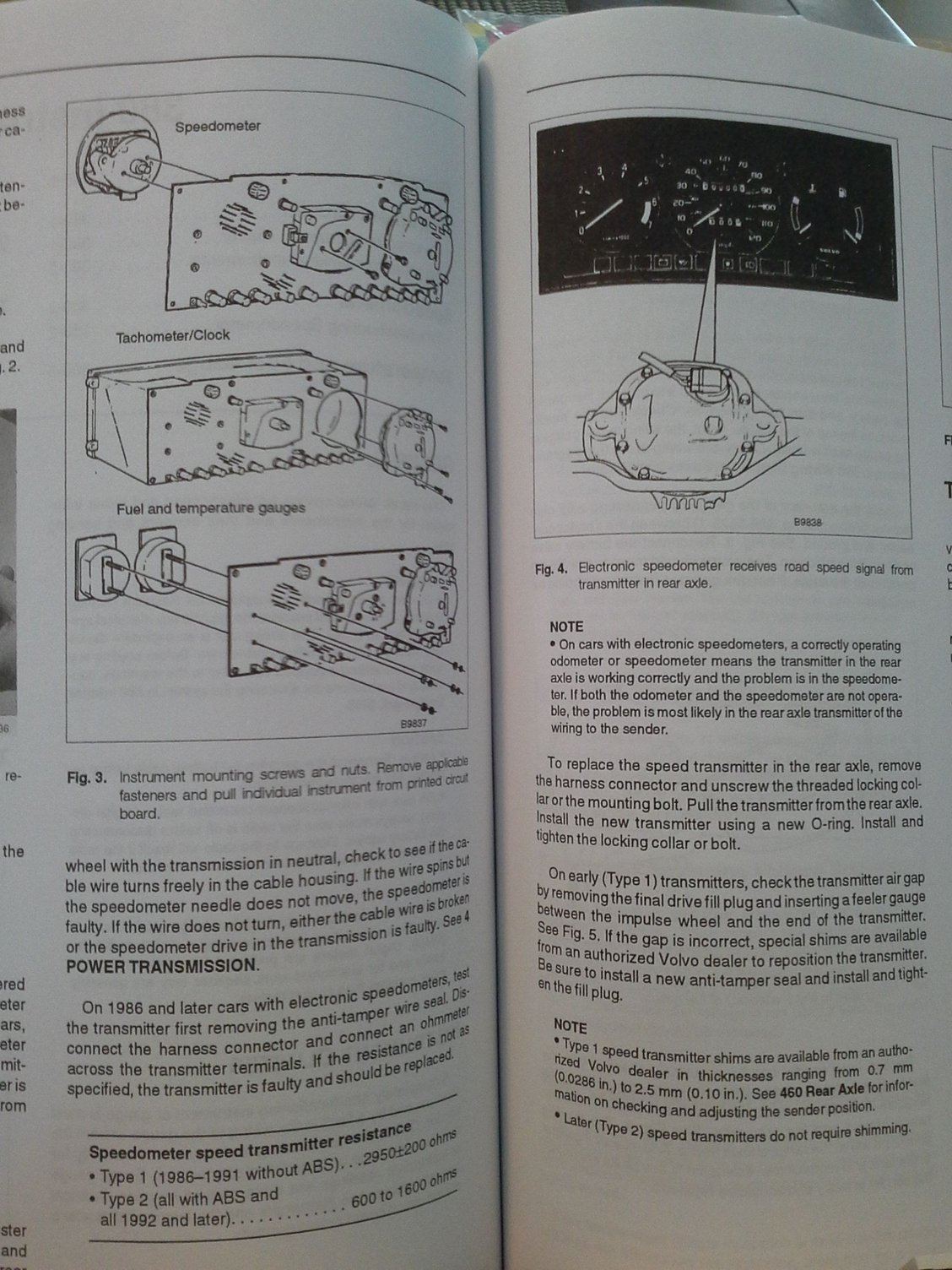

Bentley Manual 83-93 240 Editorial closing 07/1993 this is a 91 240, Im doing side x side comparison with b my 93 Odometer, the spring, gear, and trip odo reset all replaced.22 July 2020

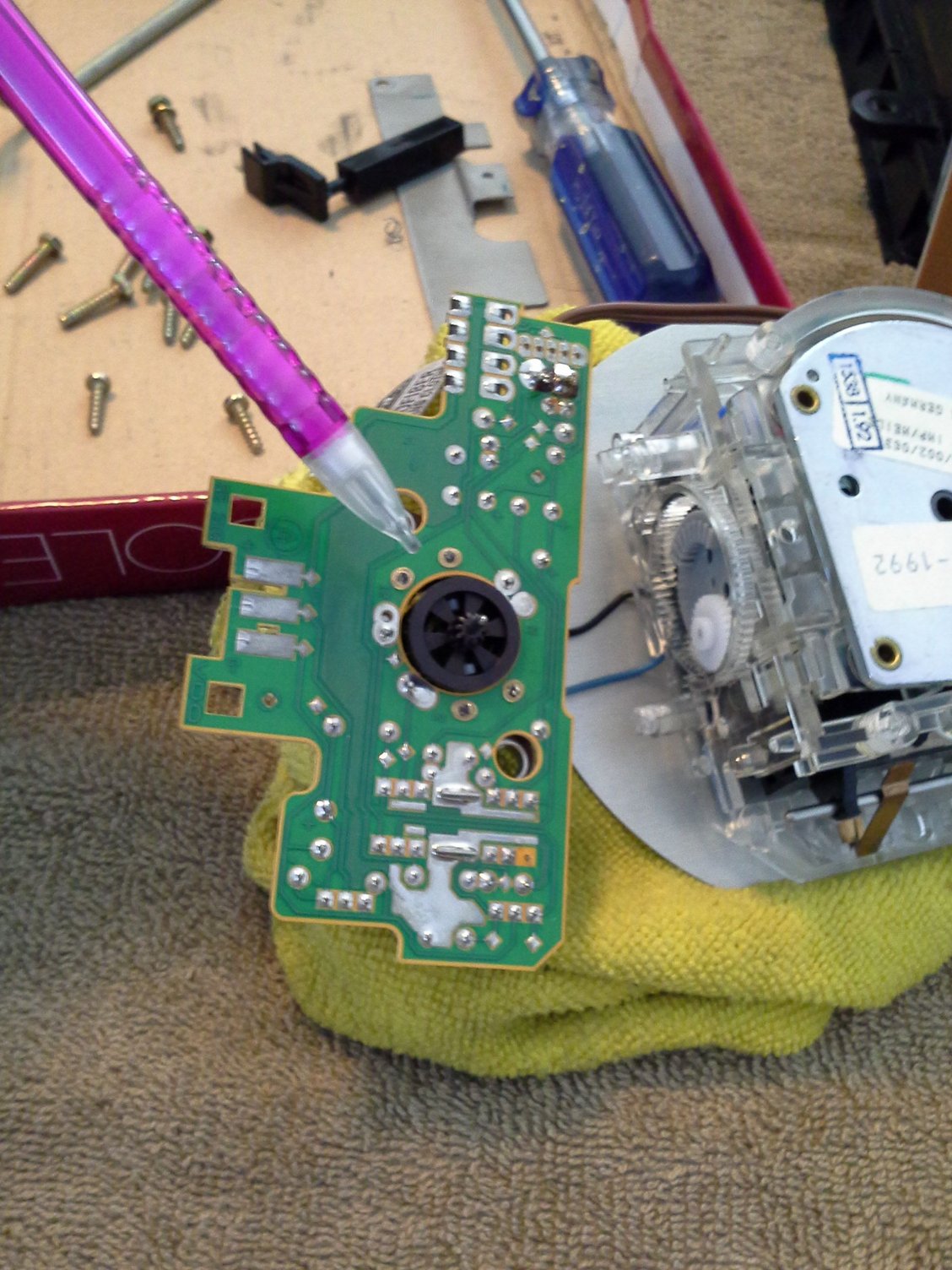

Gear motot? Should I beable to do see pic 3.

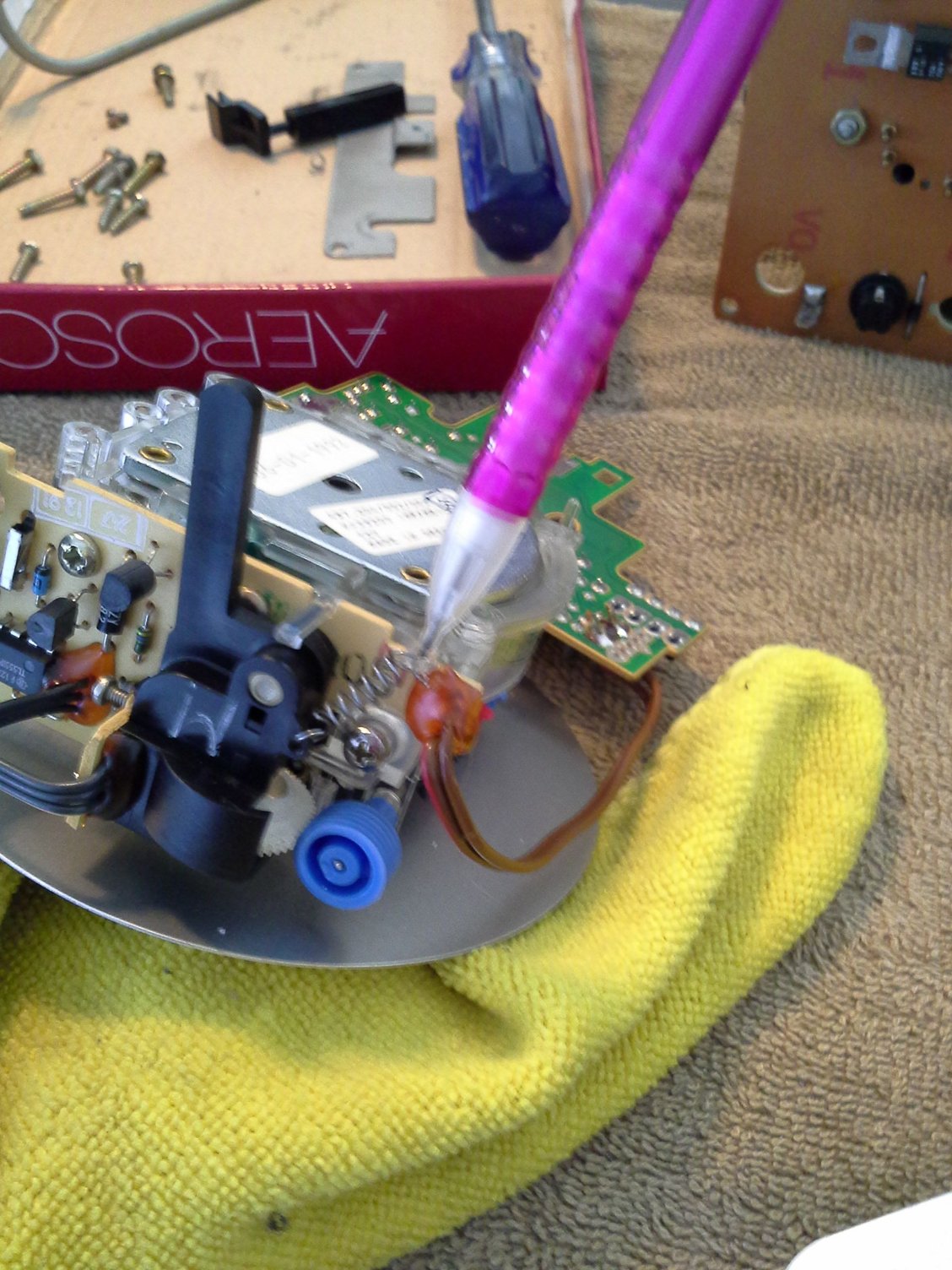

The is a magnetic \"pull/resistance but nothing snapped, cracked, popped, or made my heart sink. Ive manually advanced the speedo 7 miles trying to rule out the 25 tooth gear. It gotta be this motor.

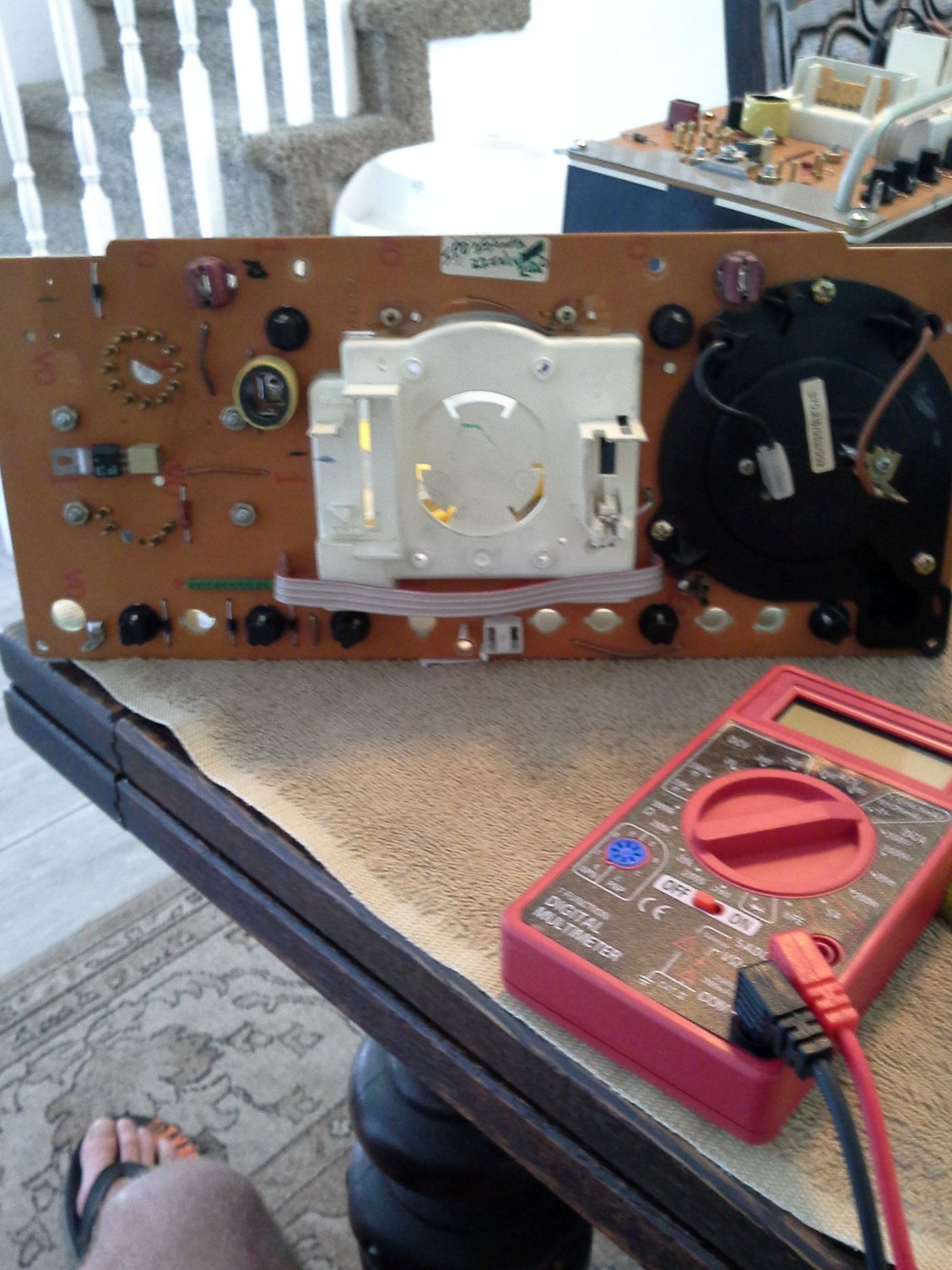

Made a spring. 3rd reinstall for test if its a spring, gears, or motor on the gears?!

Plastic post broke HAND DRILLED a very small hole away from any circutry , panel, resistet, fuse, or otherwise eletronic devices.



It could also be the chip. I had a 3-1-1 code that said the ECU was missing a signal from the speedometer. I ordered a new speedo chip (ITT2115) and that fixed my code, but as a bonus, my odometer started working again! Have you had that code show up?
​​​​​



Its missing instrument bulbs so hard to say if its telling me anything, speedo track mph, bulbs that are in it work. E break, turn signals headlights, shift indicator.

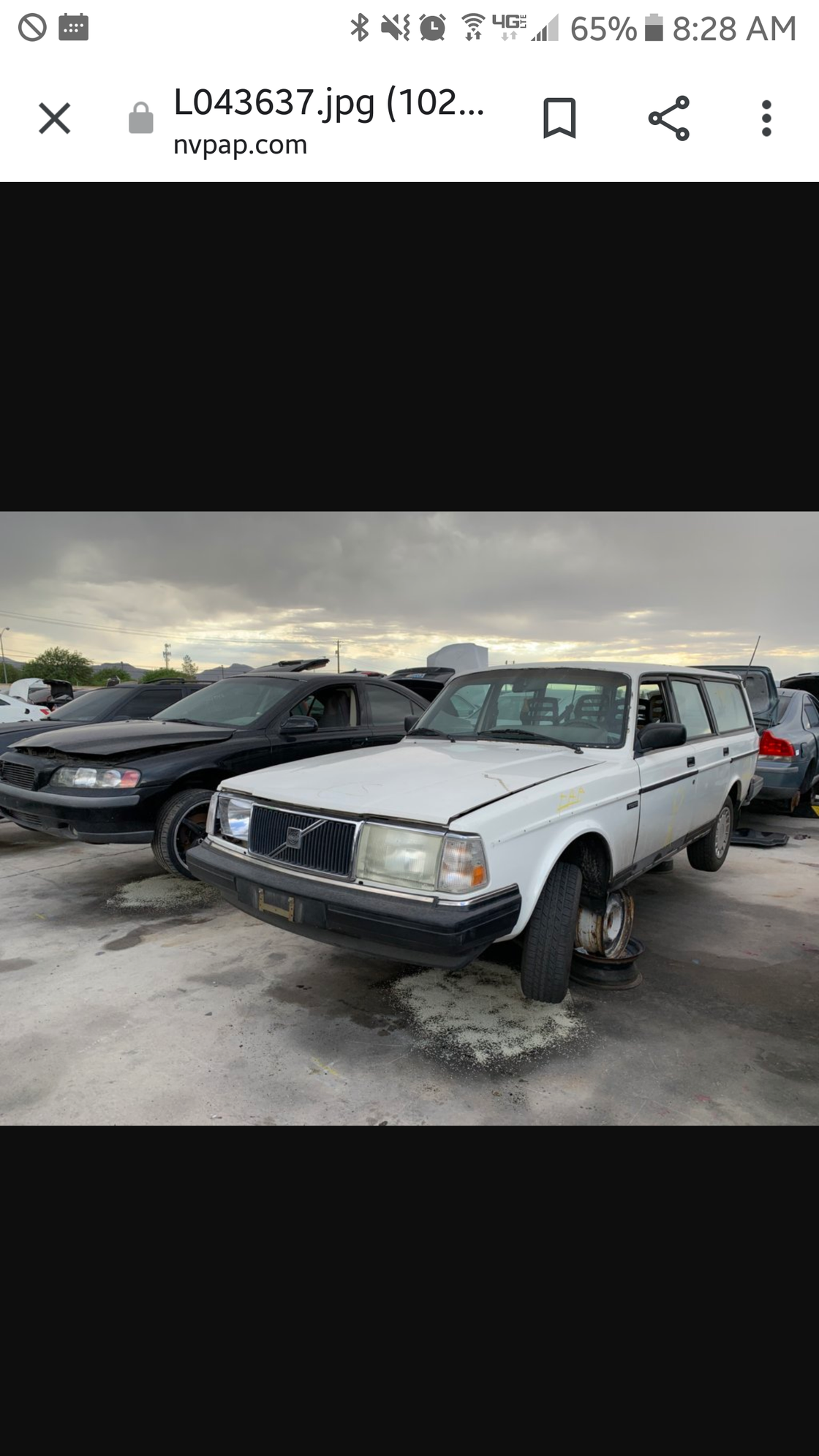

Organ donor



It very well could be your 2115 chip as it is the source of pulses that drive the stepper motor you are looking at. For a full schematic of this circuit take a look at this web site. Great work at reverse engineering.

Electronic Speedometer Notes
