Default 2011 S60 T6 - 12V Sockets Dead
2011 S60 T6 - Owner's manual says it is a 15A under the glovebox, but the picture in the manual looks nothing like the fusebox and all the 15A measure ok. Help!?

Reply
0
Old Sep 26, 2017 | 08:08 AM
Share
  #2
ES6T's Avatar
Super Moderator
Joined: Oct 2010
Posts: 5,517
Likes: 73
Default
There should be two fuse boxes under there. Are you looking at the correct one?

Reply
0
Old Sep 26, 2017 | 08:26 AM
Share
  #3
kwaskow's Avatar
Thread Starter
|
Junior Member
Joined: Sep 2017
Posts: 11
Likes: 0
Default
Originally Posted by ES6T
There should be two fuse boxes under there. Are you looking at the correct one?
Yup - the one on the right, and it does not match the picture in the owners manual.

Is there a tech manual available for comparison?

Reply
0
Old Sep 26, 2017 | 08:47 AM
Share
  #4
kwaskow's Avatar
Thread Starter
|
Junior Member
Joined: Sep 2017
Posts: 11
Likes: 0
Default

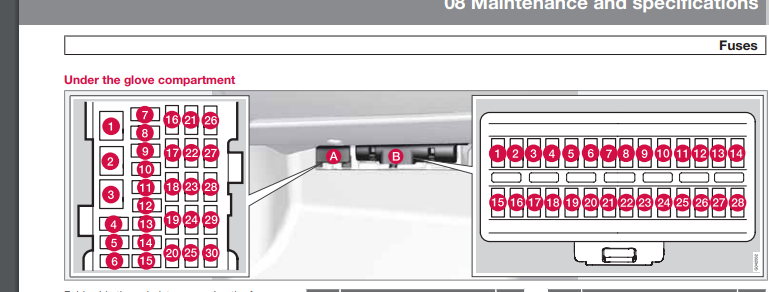

Here is the fuse box pic out of the manual:

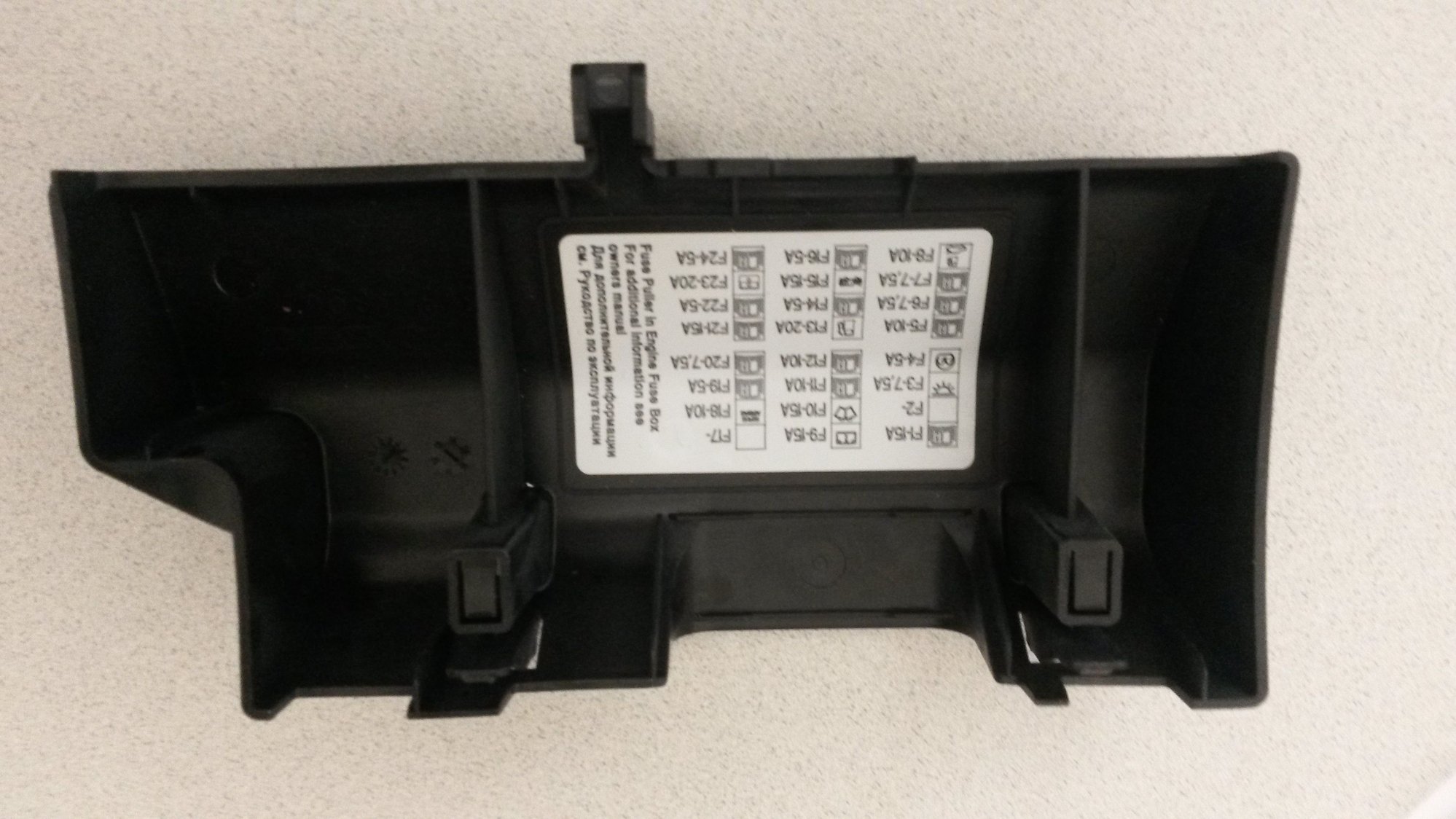

This one is the actual right side fuse box cover from under the glovebox:


Reply
0
Old Sep 26, 2017 | 09:42 AM
Share
  #5
ES6T's Avatar
Super Moderator
Joined: Oct 2010
Posts: 5,517
Likes: 73
Default
Not sure why you're looking in the one on the right when the manual says fuse F22 in the one on the left is for the 12V outlets.

Reply
0
Old Sep 26, 2017 | 09:49 AM
Share
  #6
kwaskow's Avatar
Thread Starter
|
Junior Member
Joined: Sep 2017
Posts: 11
Likes: 0
Default
Originally Posted by ES6T
Not sure why you're looking in the one on the right when the manual says fuse F22 in the one on the left is for the 12V outlets.
Just came to that same conclusion....DUH!?!!!!
