740 GLE 1986 Instrument cluster connectors
#1
740 GLE 1986 Instrument cluster connectors
This might sound a bit stupid but while removing the instrument cluster from my 1986 740 some connectors just popped out in the back before I was able to mark them. Most of them would only fit one socket so no problem there, except a small one with two cables only (red/white) which can fit multiple places so not sure where this one should be connected.
The cluster diagram in the manual I have only shows the bigger multi connectors and not this smaller one, I hope someone can help me identify where this one goes (and eventually what it is for would be nice as well)

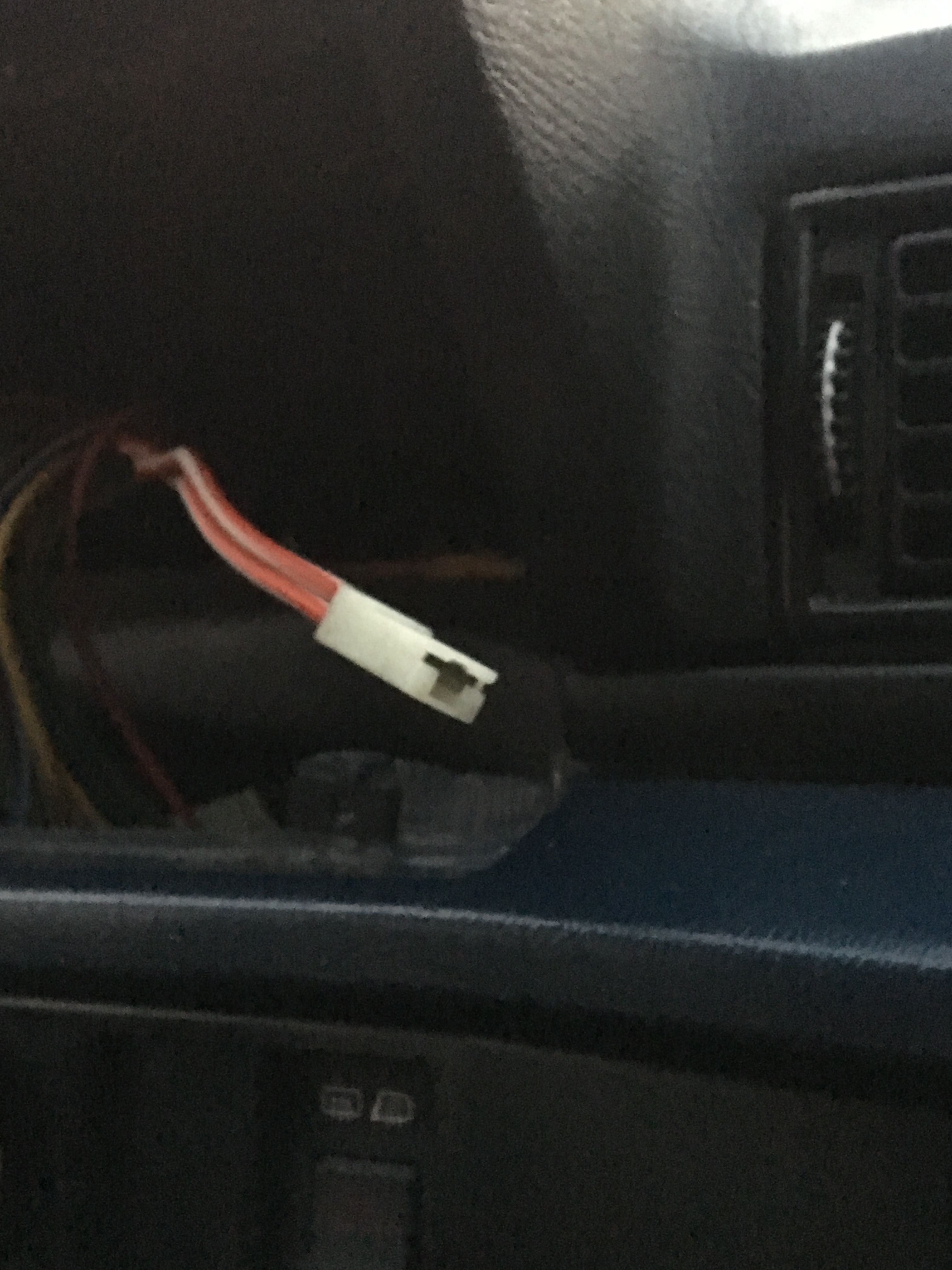

added photo of the connector here:
https://volvoforums.com/forum/attach...1&d=1497297052
The cluster diagram in the manual I have only shows the bigger multi connectors and not this smaller one, I hope someone can help me identify where this one goes (and eventually what it is for would be nice as well)
added photo of the connector here:
https://volvoforums.com/forum/attach...1&d=1497297052
Last edited by john4ever; 06-12-2017 at 02:53 PM. Reason: added photos
#3
#4
a red/white wire is usuallythe timing signal right off the ignition coil pin 1, and goes to the tach. brown or brown-white is ground.
on the 1991+ 740/940, that signal is on the "A" 8 pin connector, on pin 6. but I bet a early 740 is completely different
ok, google found this. 1984-1986 volvo 740 wiring diagram, the instrument panel connections.... yeah, white-red or red-white, there's two wires to one connection, and its the tach ('r/min' aka RPM) connection. '85' next to the r/min connector is the speedometer.
on the 1991+ 740/940, that signal is on the "A" 8 pin connector, on pin 6. but I bet a early 740 is completely different
ok, google found this. 1984-1986 volvo 740 wiring diagram, the instrument panel connections.... yeah, white-red or red-white, there's two wires to one connection, and its the tach ('r/min' aka RPM) connection. '85' next to the r/min connector is the speedometer.
