Project: 1996 Volvo 960 Headgasket
#1
Project: 1996 Volvo 960 Headgasket
It's been since October when my engine started to run very rough. I asked here and got some great advice and found that I had no compression on engine cylinder #4 and that I very possibly have a burnt exhaust valve. Since then the car has been parked and hadn't moved. Today I finally got it into a garage.
I am going to start tearing down the engine to see what I can find about the nature of the fault and while I am in there I hope to do enough maintenance and parts replacement to get maybe another two years out of this old car. Hopefully I can get even more than that, but the cost of the repairs has to stay managed. I'm not afraid to spend the money to do this right; I just don't want to spend any money at all If I find there is too much damage, this car will be going to a new owner.
I have the Volvo manuals, a few other DIY guides I printed from the net, and a few hands to help out. I'll be posting updates here which I hope will be useful to others looking at doing this job on a 960.
First progress update should be Tuesday next week. First, time to gather tools and enjoy the weekend before the $$$ and time needs start to become evident. It's been years since I had a good car project so I am eager to start.
I am going to start tearing down the engine to see what I can find about the nature of the fault and while I am in there I hope to do enough maintenance and parts replacement to get maybe another two years out of this old car. Hopefully I can get even more than that, but the cost of the repairs has to stay managed. I'm not afraid to spend the money to do this right; I just don't want to spend any money at all If I find there is too much damage, this car will be going to a new owner.
I have the Volvo manuals, a few other DIY guides I printed from the net, and a few hands to help out. I'll be posting updates here which I hope will be useful to others looking at doing this job on a 960.
First progress update should be Tuesday next week. First, time to gather tools and enjoy the weekend before the $$$ and time needs start to become evident. It's been years since I had a good car project so I am eager to start.
#3
So far nothing surprising or crazy. Engine looks great, clean flame trap and inlet tubing, everything is coming free easily. Really looks like the car was mechanically maintained before I owned it.
Have to take the intake manifold off next, that's always a PITA. Anyone know any tips on removing the intake manifold, or at least removing enough of the hardware to remove the cylinder head? I'd be happy to completely remove it to allow me to work on more of the pieces bolted down lower, but not if it is more trouble than gain.
Have to take the intake manifold off next, that's always a PITA. Anyone know any tips on removing the intake manifold, or at least removing enough of the hardware to remove the cylinder head? I'd be happy to completely remove it to allow me to work on more of the pieces bolted down lower, but not if it is more trouble than gain.
#4
#5
Tried a compression test, leaks as fast as I add air by cranking! Little oil in the cylinder, still no compression. Other cylinders were surprisingly even.
I am hoping that inspection of the internals will be telling. This car is a project now, getting it to run again would be a big plus
I am hoping that inspection of the internals will be telling. This car is a project now, getting it to run again would be a big plus
#6
Tried a compression test, leaks as fast as I add air by cranking! Little oil in the cylinder, still no compression. Other cylinders were surprisingly even.
I am hoping that inspection of the internals will be telling. This car is a project now, getting it to run again would be a big plus
I am hoping that inspection of the internals will be telling. This car is a project now, getting it to run again would be a big plus
#7
Work has been keeping me very busy so this effort is going very slow... I got the intake manifold and exhaust manifold off; real easy and no surprises. Got to to the cam gears and had to stop.

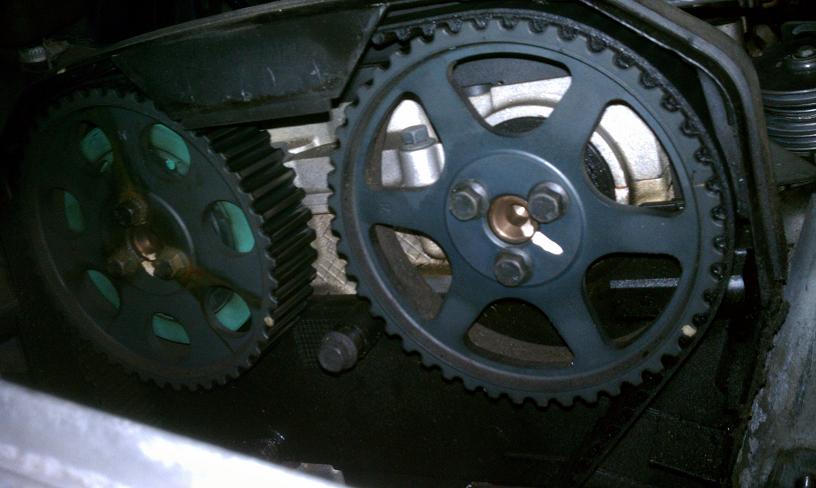

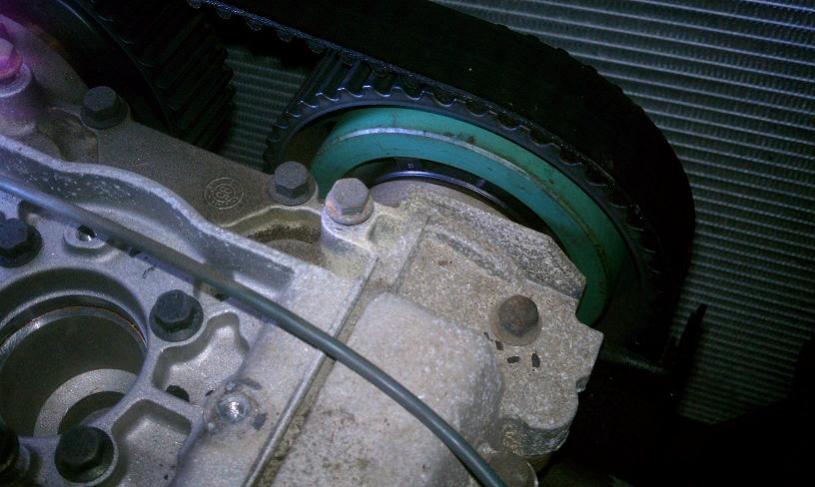

I don't recognize the green disc behind the exhaust cam gear from any of the service manuals or write-ups I have. I believe it's just a balance weight or something like that; am I right about that and are there any special directions? Another thing to keep track for orientation when reinstalling?
Photos attached.
I don't recognize the green disc behind the exhaust cam gear from any of the service manuals or write-ups I have. I believe it's just a balance weight or something like that; am I right about that and are there any special directions? Another thing to keep track for orientation when reinstalling?
Photos attached.
#8
Work has been keeping me very busy so this effort is going very slow... I got the intake manifold and exhaust manifold off; real easy and no surprises. Got to to the cam gears and had to stop.
I don't recognize the green disc behind the exhaust cam gear from any of the service manuals or write-ups I have. I believe it's just a balance weight or something like that; am I right about that and are there any special directions? Another thing to keep track for orientation when reinstalling?
Photos attached.
I don't recognize the green disc behind the exhaust cam gear from any of the service manuals or write-ups I have. I believe it's just a balance weight or something like that; am I right about that and are there any special directions? Another thing to keep track for orientation when reinstalling?
Photos attached.
Yes, all it is is a flywheel. Make sure you set the timing gear, cams and crankshaft on their marks before dis-assembly. Also mark the timing gears exhaust and intake, mark their relation ship to the cams too.
A very common instruction on the web is to have the number one cylinder at TDC, but that is not correct, with the crank on it's mark all pistons are below or just below the deck and allow for full rotation of the cams without interference.
DanR
#9
Finally got back to the car. Upper head is off, camshafts out, lifters in oil, etc.
Got to use a neat tool from Kobalt. PERFECT for getting the cam sensor off the back of the exhaust cam. Works with sockets too, I was impressed at how easy it made working on the back of the engine head against the firewall. Kobalt 21-Piece Flex and Bit Thru Ratchet Set.
Tomorrow I am going to take the lower head off and see what I am up against. So far, nothing at all out of the ordinary.
Got to use a neat tool from Kobalt. PERFECT for getting the cam sensor off the back of the exhaust cam. Works with sockets too, I was impressed at how easy it made working on the back of the engine head against the firewall. Kobalt 21-Piece Flex and Bit Thru Ratchet Set.
Tomorrow I am going to take the lower head off and see what I am up against. So far, nothing at all out of the ordinary.
#10
Good news, mediocre news, bad news.
- The had is off and generally it looks like a healthy engine.
- Cylinder #4 does have a burnt exhaust valve as I had suspect, good chunk of it is gone. I'll have the shop decide which need replacement and while they are in there to do some other clean-up and maintenance.
- I broke off one of those insane head bolts. Just awful.
- Use a transfer punch to find center of the broken remnant of bolt. It's pretty deep in there...
- Use a long left hand drill bit to drill out the center for an extractor.
- Try an extractor if the drill doesn't do it on its own.
#11
Incredibly slow moving; too much going on at work.
The extractor broke (apparently as they always do - by all personal counts of folks I spoke with these are worthless), had to weld a bolt atop of the extractor to back it off. Now I am back to the first stage. I need to get a 9/16"OD 3/8"ID bushing and finish drilling out the stud. Then I should be able to chisel out the remaining shell of thread that is galled into place.
After the headbolt is fully removed and I am back on track, the head goes off to the machinist for a rebuild.
The extractor broke (apparently as they always do - by all personal counts of folks I spoke with these are worthless), had to weld a bolt atop of the extractor to back it off. Now I am back to the first stage. I need to get a 9/16"OD 3/8"ID bushing and finish drilling out the stud. Then I should be able to chisel out the remaining shell of thread that is galled into place.
After the headbolt is fully removed and I am back on track, the head goes off to the machinist for a rebuild.
#13
#15
vacuum leak
Looks like Im having the same problem with my 95 volvo 960.I have idle issue and it making the engine to shake.I changed the idle air control valve, and also the air mass meter boot, it hasn't helped. I took it it to mechanic he recommended me to change the 4th coil and still nothing. I don't mind spending money on it. But I want to see results. Intake manifold gasket has not been charged since day one, can that cause a vacuum leak and cause the engine shake.
#16
Looks like Im having the same problem with my 95 volvo 960.I have idle issue and it making the engine to shake.I changed the idle air control valve, and also the air mass meter boot, it hasn't helped. I took it it to mechanic he recommended me to change the 4th coil and still nothing. I don't mind spending money on it. But I want to see results. Intake manifold gasket has not been charged since day one, can that cause a vacuum leak and cause the engine shake.
