Hello all! I was trying to get the radio out of my 03 XC90. I popped the trim off around the switches next to the cvigarette lighter and then was popping off the pannel around the climate controls woerking my way up. I realized that that was not the correct way because it was getting difficult. I put everything back together, but now THERE ARE LIGHTS NOT WORKING BEHIND SOME BUTTIONS! Does anyone have any suggestions or a diagram of the entire unit blown apart? Any help is very much appreciated!



I have XC90 2004 and I am having the same problem. I am stuck at removing the climate control panel. Something is holding it from the top. Can anyone help?



There are 6 screws that I removed shown on the picture but still no luck.



I have not had one out in a while. But if I remember correctly they are like the S80 and S60. There is metal tabs sticking out from the bottom of the radio area. The climate module slides into under the radio. You need to tip the climate module slightly out on the bottom then pull it straight out. It is a major Pita sometimes.



You found the required screws to swing the whloe unit out from the bottom. The lip at the top holds it into the dash. There are spring clips around it to keep it tight.

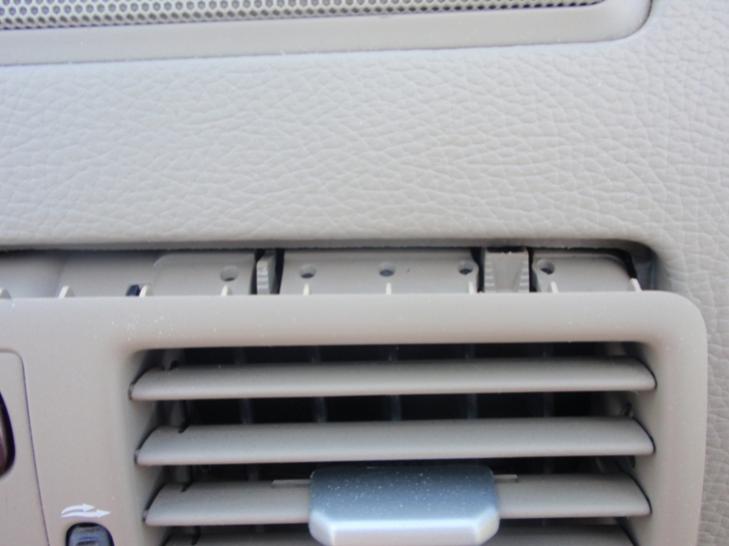

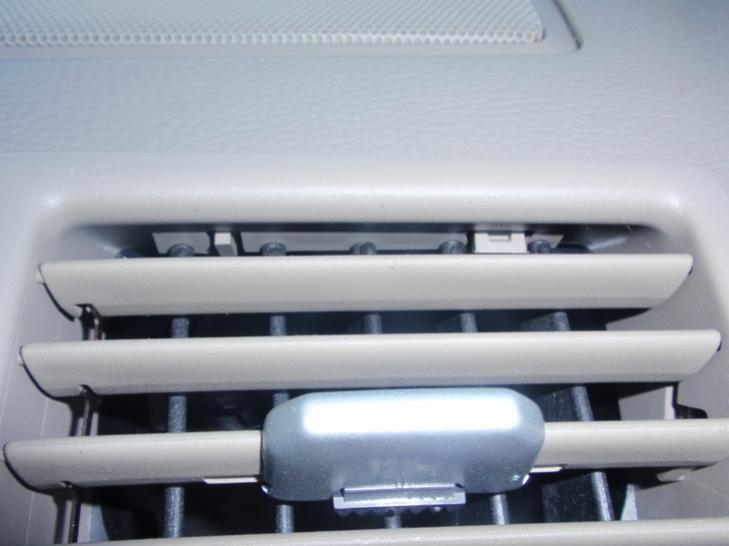

You can get more access to the top of the radio cluster by removing the vents, but they have self-locking tabs at teh top of the vent opening.
